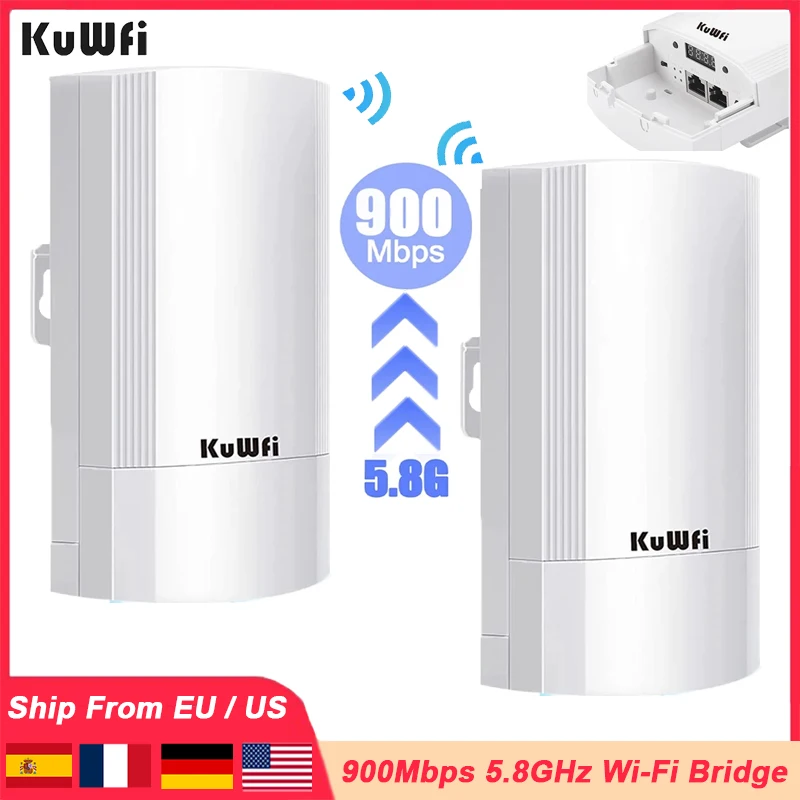

KuWFi 5.8G 900Mbps CPE Bridge Outdoor Waterproof Wireless WiFi Bridge AP Repeater Router PTP Up to 1-3KM with WAN LAN 24V POE

Please Notice:
1-3KM distance ,it mean point to point (we test it)
The transmission distance is affected by many factors, such as local network conditions, buildings, trees, etc.，maybe it cannot reach 1-3KM,but please understand.
Please open this link to check how to use it ,thanks!
web://youtu.be/g0gVvON92Q0
Product Description
1.This cpe router produce 5.8G900Mbps, Long Range WiFi Extender Outdoor Wireless Bridge CPE with LED display to configure the PT/PTMP connection
2.Build in 12dBi MIMO panel antenna(embedded) ,High Gain Antenna for More Range

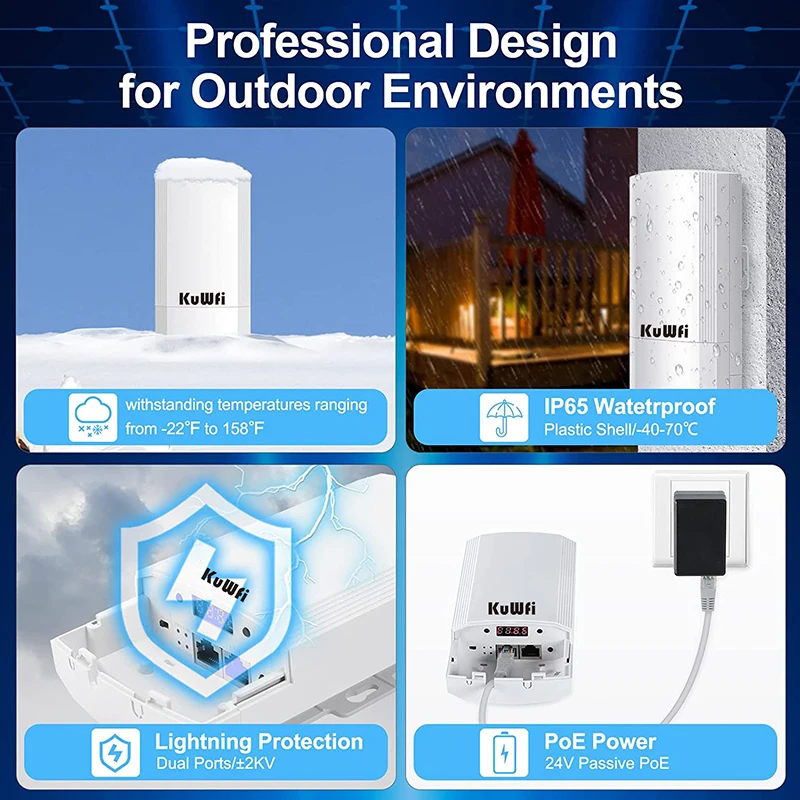

3.CPE200 with ABS waterproof, dustproof and sunscreen shell, temperature adaptive also; Meantime, it support 24V passive PoE, ESD protection and surge protection, ideal for outdoor use
4.Waterproof/dust proof/lighting protection; Operating Temperature: -30℃-55℃ Storage Temp: -40℃-70℃
5.Multi-Mode
– Support Wireless AP, Repeater operation mode
– Support SSID broadcasting, Multi SSID up to 4
– Support DHCP serverNetwork Security
6.Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security
7.Users Max: 64, Recommand: 30
8.Transmit power: 19±2dBm
Detail
Operation Mode:Wireless AP, Wireless repeater
Interface:
1*10/100Mbps WAN Port,
1*10/100Mbps LAN Port（By connecting to a wireless network, the Wifi speed can reach 900 Mbps; if you connect to a wired network through a LAN port, the network speed will be below 100 Mbps）
1 * Switch to operate the operation mode (Right is AP mode, Left is Repeater mode)
1 * Reset button
FLASH * DDR2: FLASH 8MB * DDR2 64MB
Waterproof Level:IP65
Wireless security: OPEN、WPA、WPA2、WPA-PSK、WPA2-PSK
Packing list:
2pcs CPE Bridge
2pcs POE Power Adapter (24V0.5A)
1pcs Quick Start Guide
2pcs Ethernet Cable (1meter)
Tips: If the two devices do not communicate, please press “reset” at the same time to reset them, Note: Manual pairing=press ‘reset’ at the same time for 1 second
Finally, they will communicate with each other and pass your WiFi from H to C.
Tips:
WAN connects to PoE, LAN connects to other devices
Product

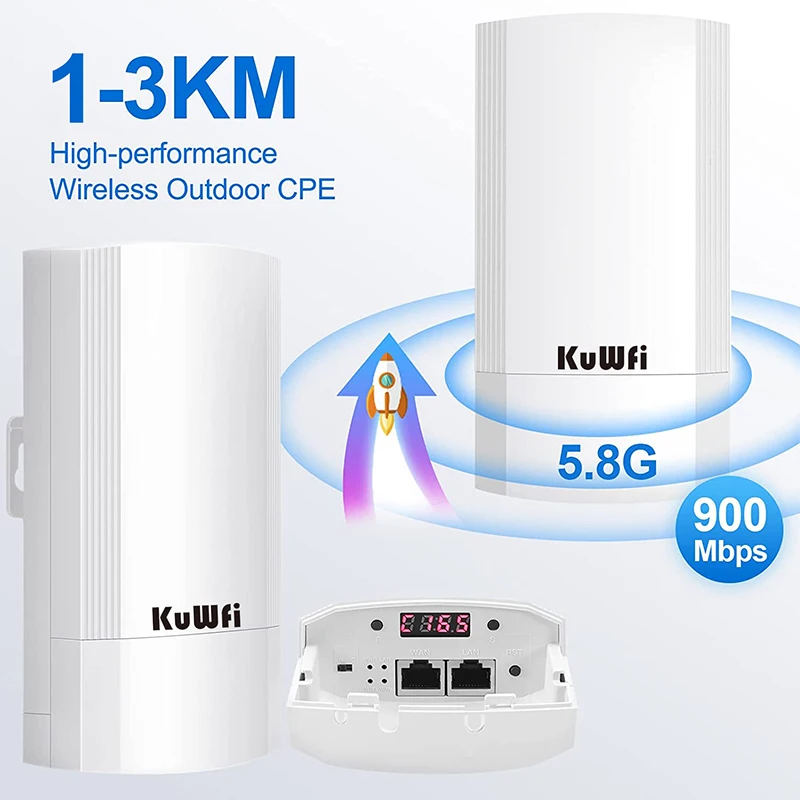

CPE200 wireless bridge is a 5.8G high-performance, high-speed outdoor long-distance wireless network bridge. It has the characteristics of long transmission distance, strong penetrating ability, and strong anti-interference ability. It supports intelligent channel analysis and automatic optimal channel selection. Realize point-to-point and point-to-multipoint outdoor coverage and applications. Very suitable for Internet expansion and monitoring range expansion of garages, barns, shops, docks, etc

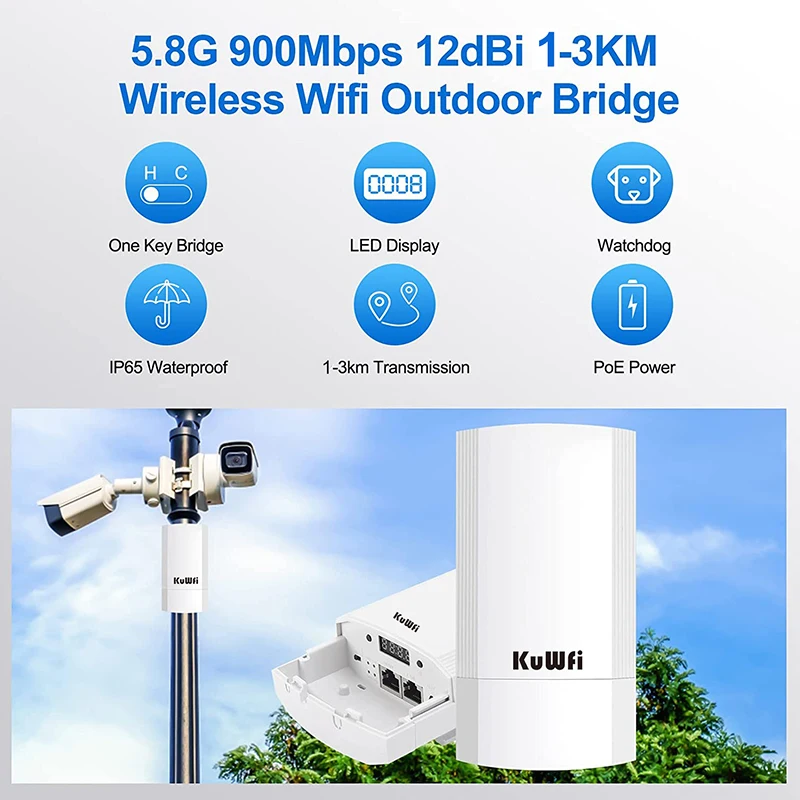

This wifi outdoor bridge built-in 12dBi directional antenna can significantly improve the transmission and reception performance of wireless signals,data rate max up to 900Mbps between the bridge,which supports 1-3KM long-distance wireless transmission.suitable for warehouses, garden,barns, shops, or garages next to your house.
Multi-Mode wireless wifi bridge with ethernet port and LED display: Support Wireless AP, Repeater operation mode; Support SSID broadcasting, Multi SSID up to 4; Support DHCP server. It transmits via wireless WiFi, reducing the trouble of wiring cable.
Switch”C”to repeater mode

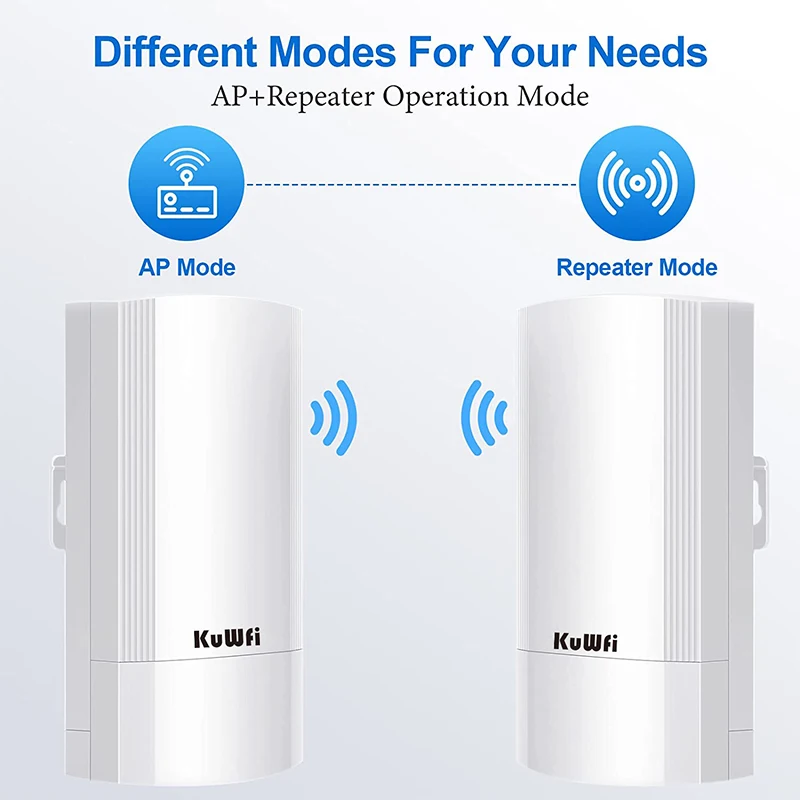

Support AP/Repeater Operation Mode；Suit for various Wi-FI transmission schemes
5.8G frequency using a new generation of 11ac technology is better than 2.4 G traditional CPE. It makes long-range WiFi bridge has better anti-interference performance, good compatibility, and strong anti-adjacent channel interference. Wireless bridge IP65 dustproof and waterproof, lightning protection,and antifreeze,is very suitable for outdoor use.
Full information LED display, include host-client mode(H or C,the number behind is the channel number), signal strength(P,a number will be displayed after the pairing is successful), IP address(A), port /wifi/power led, the F button can switch the LED display info, the S button can complete the setting, more clearly know the device status, more conducive to debugging and maintenance.
